KDSS-Compatible Splash Guards & Mud Flaps for the 4Runner: What Actually Fits
The short answer first
If your 4Runner has KDSS, the splash-guard question splits in two:
- Mud flaps and mud flap deletes: no special version needed. They mount behind the wheels, away from KDSS hardware, and Ark sells one version that fits KDSS and non-KDSS trucks alike.
- Front inner splash guards — the panels that close the gap at the front of the front wheel wells: this is where “KDSS-compatible” is a real, separate part. The KDSS sway bar is bigger and routed differently, and a guard shaped for the standard bar can rub it.
Everything below unpacks that, generation by generation, with the guards we carry at The Daily 4Runner and what they cost. New to KDSS itself? Start with our full explainer, 4Runner KDSS Explained: Lean, Problems & Fixes, then come back here for the fitment shopping.
KDSS in 60 seconds
KDSS — Kinetic Dynamic Suspension System — links your 4Runner’s front and rear sway bars with hydraulic lines and cylinders. On pavement, the system keeps the bars working so the truck corners flatter. Off-road, it effectively relaxes the bars so the axles can articulate far beyond what a fixed sway bar allows.
On the 4Runner, KDSS was a fifth-generation option only: available on the Trail Edition (2010–2016) and as an option on TRD Off-Road and TRD Off-Road Premium (2017–2024). It was never offered on the SR5, the Limited (which used X-REAS instead), or the TRD Pro — and the 3rd and 4th gens never had it. The 6th gen (2025+) dropped KDSS in favor of a stabilizer-bar disconnect, so for 2025–2026 trucks this is a non-issue.
Not sure if yours has it? The giveaway is under the front end: a noticeably thicker front sway bar with steel hydraulic lines running to it, and an accumulator mounted along the frame rail. Our KDSS guide walks through identification in detail.
Why standard guards can foul KDSS hardware
The KDSS front sway bar is substantially larger in diameter than the standard bar, and it’s routed lower with hydraulic lines that pass through the exact neighborhood the front splash guard occupies — the panel that seals the front of the wheel well against the body. Two problems follow:
- Clearance. A front splash guard molded for the standard bar can sit against the KDSS bar or its lines. Contact that looks harmless in the driveway becomes chafing through steering lock and suspension travel — and a chafed hydraulic line is a much more expensive problem than a splash guard.
- Articulation. KDSS trucks move their wheels further. A guard that clears at ride height may not clear at full droop or full compression once the system is doing its job off-road.
That is why Ark shapes a dedicated KDSS version of its front splash guards — on Ark’s own fitment chart, the 2010–2024 front guards are chosen as “Stock or Suspension Lift” or “KDSS or Suspension Lift.” The rear of the truck and anything mounted behind the wheels doesn’t share this conflict, which is why mud flaps and deletes don’t get a KDSS variant at all.
What makes a guard KDSS-compatible: the checklist
Shopping any brand, this is what to confirm before you buy for a KDSS truck:
- The maker names KDSS explicitly. If the listing for a front splash guard doesn’t mention KDSS fitment, assume it’s shaped for the standard bar.
- You’re looking at the right part. Front inner splash guards = KDSS matters. Mud flaps, mud flap deletes, micro deletes, and rear guards = mounting points sit behind the wheels, clear of the sway-bar hardware.
- Lift type is declared. Ark’s KDSS versions are “KDSS or Suspension Lift” — a suspension lift doesn’t change the pick. A body lift changes body-to-frame geometry, and Ark’s classic splash guards handle that with separate body-lift variants instead.
- Trim exceptions checked. Ark’s note on the 5th gen line: the mud flaps and micro deletes will not fit the 4Runner Limited — which is a non-issue for KDSS shoppers, since no Limited ever had KDSS.
- Material that flexes instead of cracking. The whole point of Ark’s TriXPoly blend is surviving the rubbing and trail contact that kills rigid factory-style flaps — relevant on a truck whose wheels travel as far as a KDSS truck’s do.
The picks: Ark guards we carry, by generation
Ark builds its guards in the USA, backs them with a lifetime warranty per the product listings, and cuts them from its TriXPoly poly blend — tougher and more flexible than the factory rubber-and-plastic pieces. Here is the lineup at TD4R, with the KDSS answer for each generation. (For the full Ark range in one place, see the Ark Splash Guards collection, and our overview article, ARK Splash Guards for Toyota 4Runner: What They Do & Why They Matter.)
5th gen (2010–2024) — the KDSS generation

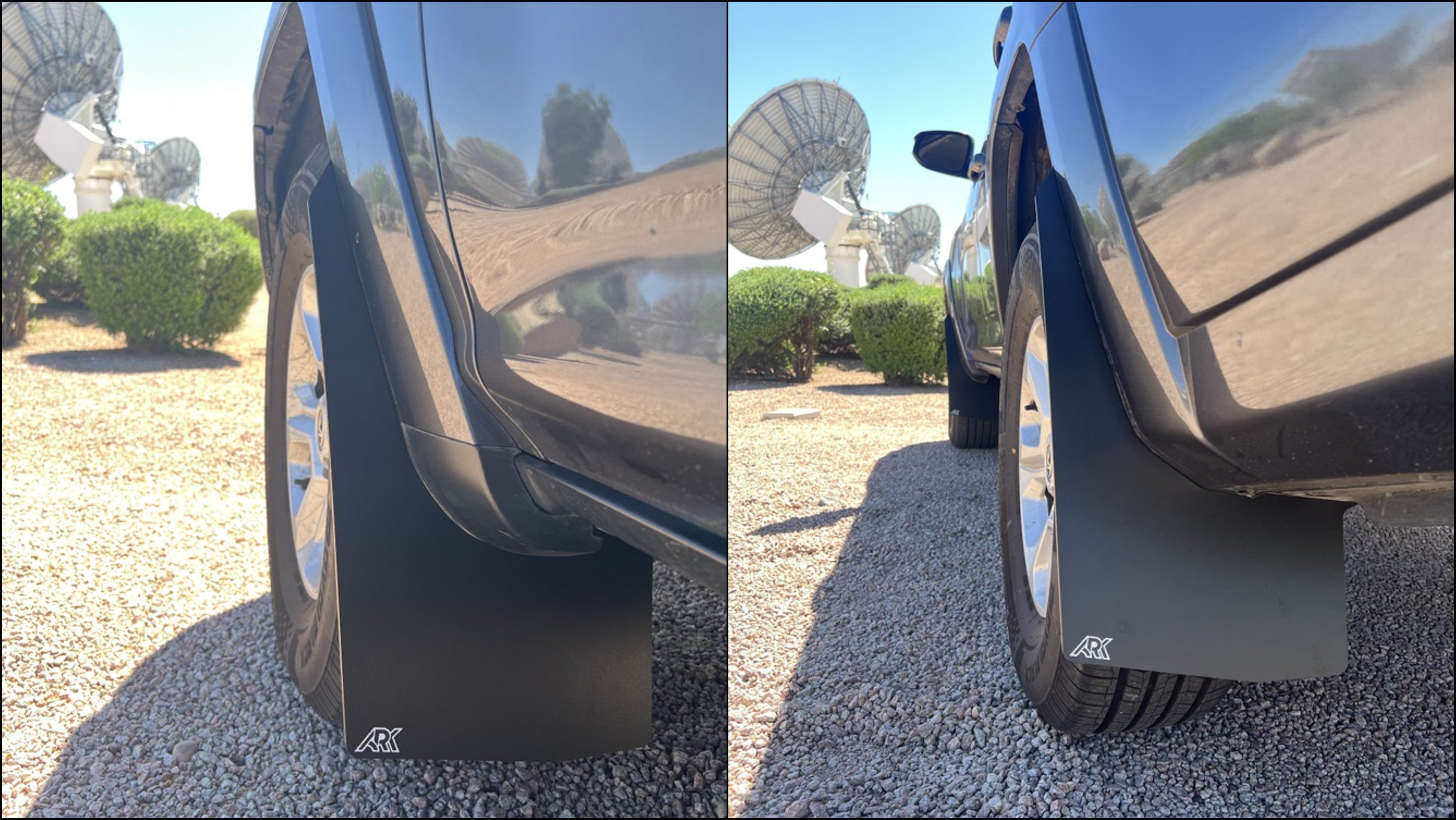

2010–2024 Toyota 4Runner TriXPoly Mudflaps — Complete Set $148.99 (was $153.99) · Front Only $80.99 · Rear Only $86.99
The full-coverage pick. Because these mount behind the wheels, there is no KDSS version to hunt for — the same set fits a KDSS-equipped Trail or TRD Off-Road and a non-KDSS truck. The listing describes them as part of Ark’s “KDSS and Non-KDSS Splash Guards, Micros, and Mud Delete series,” and the eight logo colors let you match the truck. One hard exception from Ark: these will not fit the 4Runner Limited.

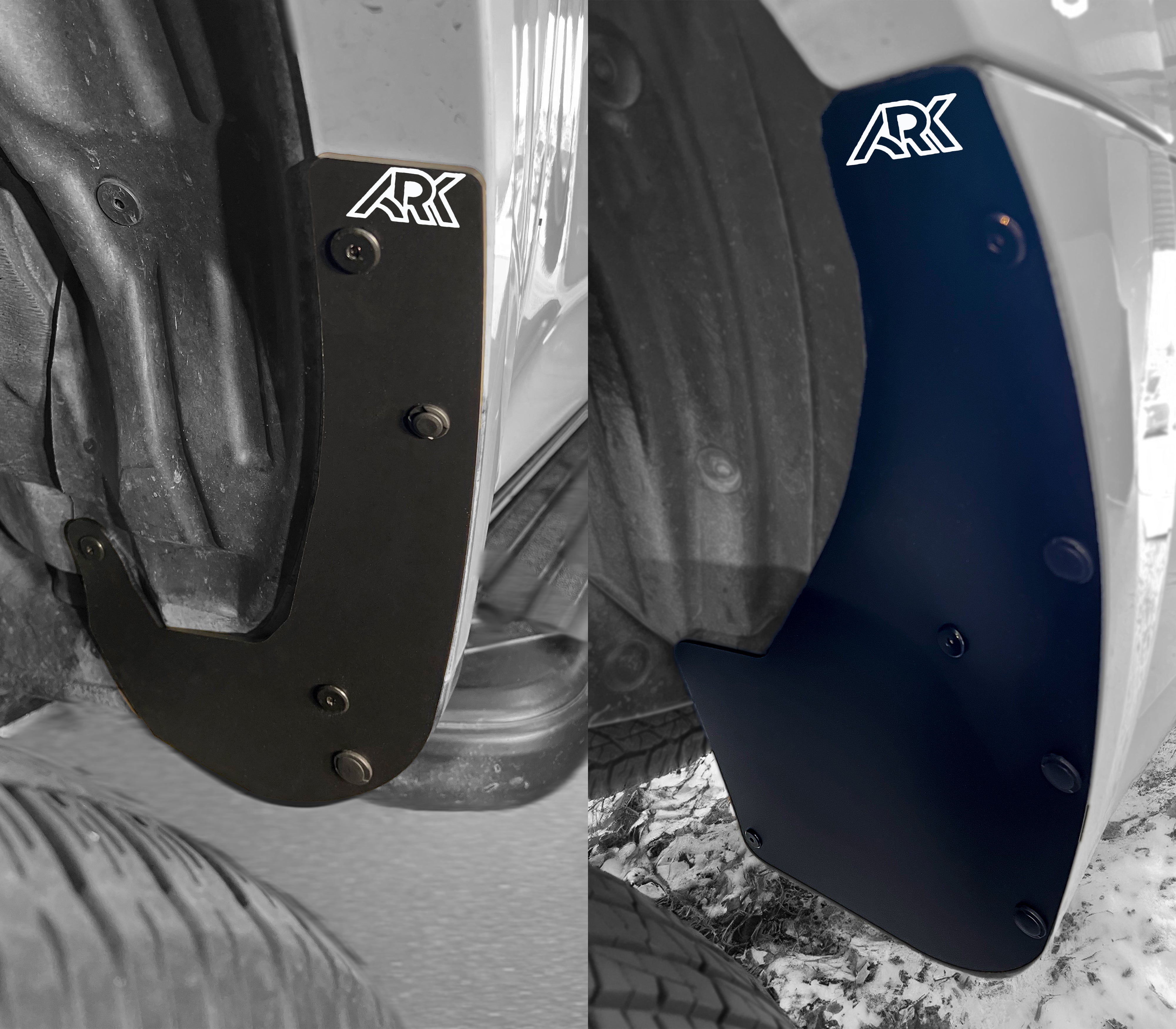

2010–2024 Toyota 4Runner Standard Mud Flap Deletes — Complete Set $107.99 (was $112.99) · Front Only $49.99 · Rear Only $72.99
Running bigger tires that chew up the factory flaps, or just want the clean look? The deletes replace the hanging flaps with fitted panels that keep wheel-well coverage without the rub — front deletes are the popular fix on trucks whose tires kiss the stock flaps at full lock. Same KDSS story as the mud flaps: one version, fits KDSS and non-KDSS alike.
The honest gap: if what you actually need is the front inner splash-guard panels for a KDSS truck, that’s the one part where you must have the KDSS-specific version — and it’s not among our current Ark listings. Browse the Ark collection for everything we do carry, and if you’re mid-build on a KDSS truck, the Dr KDSS collection covers the sway-bar hardware side of the same system.
3rd gen (1996–2002) — no KDSS, fitment by body lift

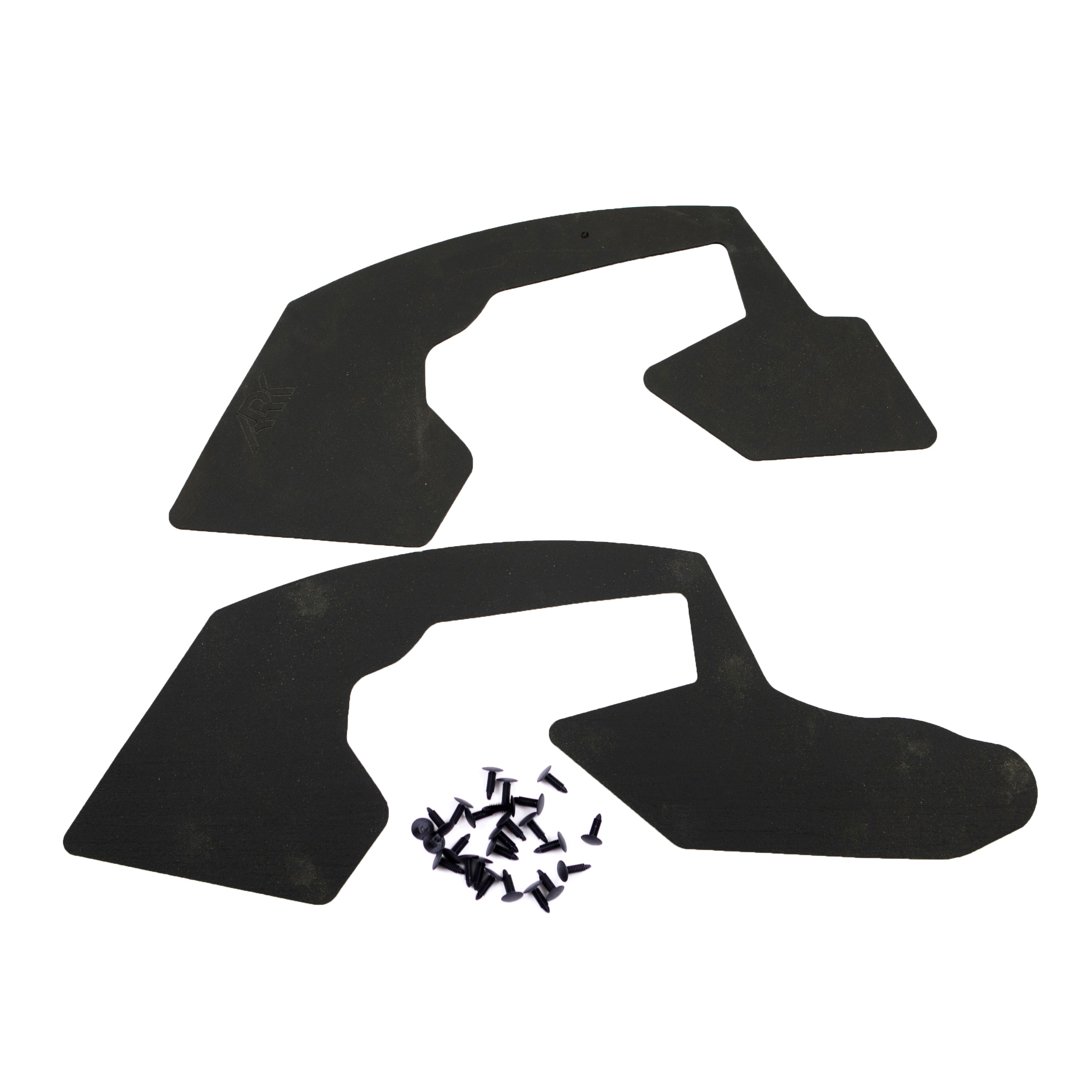

1996–2002 Toyota 4Runner Splash Guards — $132.99
KDSS didn’t exist yet, so the only fitment decision here is your lift: choose stock/suspension lift, or the 1″, 1.5″, 2″, or 3″ body-lift variant so the guards meet the body where it actually sits.
4th gen (2003–2009) — no KDSS here either

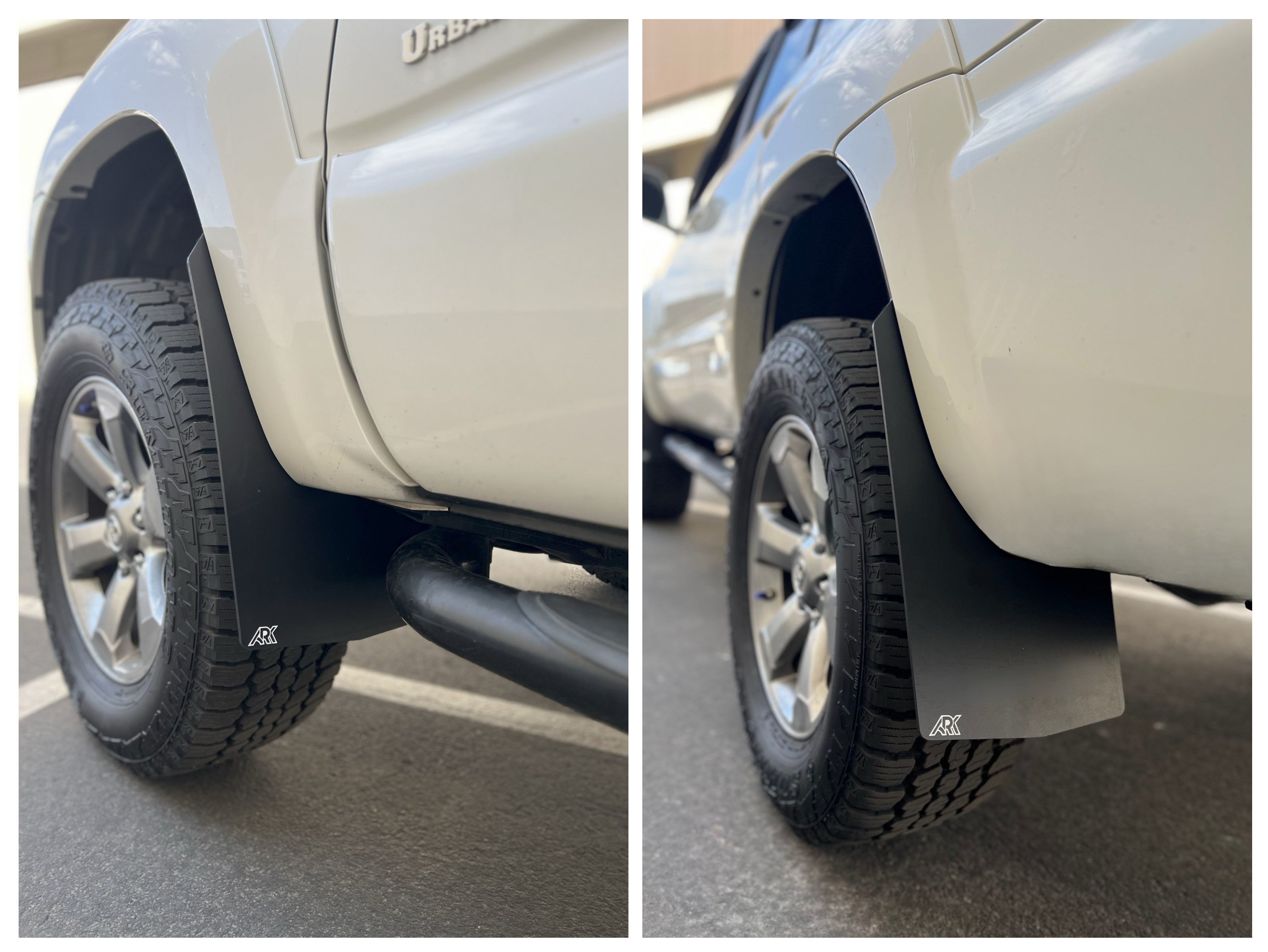

2003–2005 Toyota 4Runner TriXPoly Mudflaps and 2006–2009 Toyota 4Runner TriXpoly Mudflaps — Complete Set $148.99 · Front Only $80.99 · Rear Only $86.99
2003–2005 Toyota 4Runner TriXPoly Mudflap Deletes and 2006–2009 Toyota 4Runner TriXPoly Mud Flap Deletes — Complete Set $107.99 · Front Only $49.99 · Rear Only $72.99
The 4th gen never offered KDSS (some trims ran X-REAS, which doesn’t change flap fitment), so buy your year range and your style and you’re done.
6th gen (2025–2026) — KDSS is gone, fit by trim instead
2025–2026 Toyota 4Runner TriXpoly Mudflaps — Complete Set $148.99 · Front Only $80.99 · Rear Only $86.99

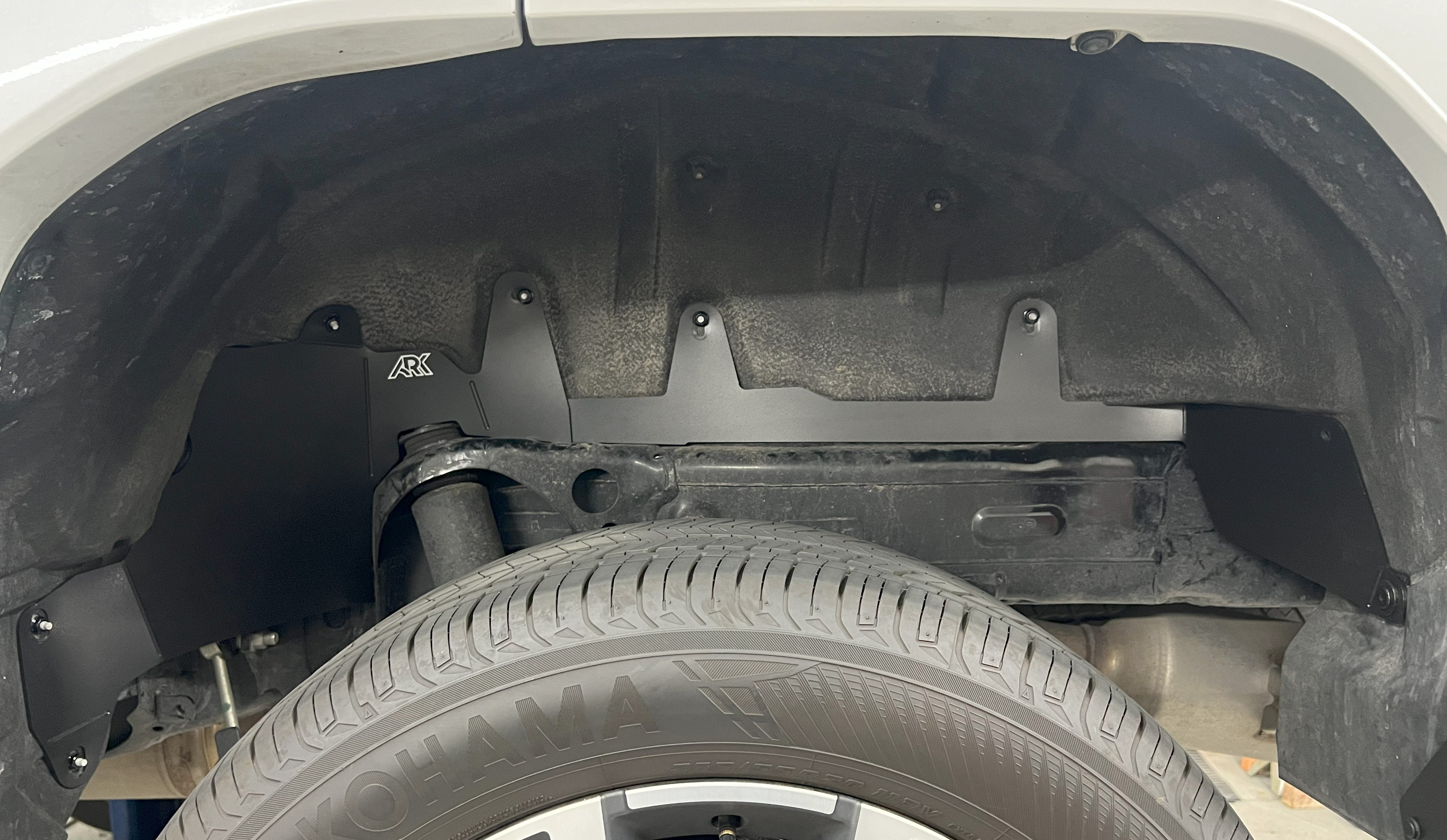

2025–2026 Toyota 4Runner TriXpoly Rear Splash Guards — $103.99
Toyota replaced KDSS with a stabilizer-bar disconnect on the 6th gen, so there’s no KDSS version to worry about — instead, pick your trim (the mud flaps come in standard and TRD Pro/Trailhunter versions). The 2025–2026 Micro Flares, from $35.99, are the low-profile option if you want coverage without a hanging flap.
Frequently asked questions
What does “KDSS-compatible” actually mean for a splash guard?
It means the guard is shaped to clear the KDSS front sway bar and its hydraulic lines. KDSS uses a much larger front bar routed through the space the front inner splash guard covers, so Ark cuts a dedicated KDSS version of its 2010–2024 front splash guards. For parts that mount behind the wheels — mud flaps, deletes, rear guards — there’s nothing to clear, and no separate version exists.
Which 4Runners have KDSS?
Only the 5th generation (2010–2024), and only as an option: offered on the Trail Edition (2010–2016) and on TRD Off-Road and TRD Off-Road Premium (2017–2024). The SR5, Limited, and TRD Pro never had it, the 3rd and 4th gens predate it, and the 6th gen replaced it with a stabilizer-bar disconnect. Our KDSS explainer covers the system in depth.
How can I tell if my 4Runner has KDSS?
Look under the front end for an unusually thick front sway bar with steel hydraulic lines running to it and an accumulator mounted on the frame rail. The original window sticker or options list will also name KDSS. If your front bar looks like a normal sway bar with rubber bushings and no plumbing, you don’t have it.
I have KDSS — do I need special mud flaps?
No. Mud flaps and mud flap deletes mount behind the wheels, away from the sway-bar hardware, and Ark sells a single version that fits KDSS and non-KDSS 5th gens. It’s the front inner splash-guard panels where the KDSS-specific version matters.
Will Ark’s 5th gen mud flaps fit my Limited?
No — Ark states the Gen 5 mud flaps and micro deletes will not fit the 4Runner Limited variant. (No Limited was ever sold with KDSS, so if you have KDSS, this exception doesn’t apply to you.)
My KDSS 4Runner is lifted. Which version do I order?
For a suspension lift, Ark’s KDSS version is the pick either way — it’s listed as “KDSS or Suspension Lift.” Body lifts are different: they change the gap between body and frame, and Ark handles those with dedicated body-lift variants on its classic splash guards (the same choice offered on the 3rd gen guards we carry).
Do you sell the KDSS front splash guards themselves?
Not currently — our Ark lineup for the 5th gen is the TriXPoly Mudflaps and Standard Mud Flap Deletes, which fit KDSS trucks because of where they mount. Everything Ark we stock is in the Ark Splash Guards collection, and KDSS hardware upgrades live in the Dr KDSS collection.
What if I run bigger tires — flaps or deletes?
Deletes. Full mud flaps give the most spray and rock protection on a stock-ish truck, but oversized tires tend to rub hanging flaps at full lock — the exact reason the delete kits exist. The deletes keep fitted wheel-well coverage without anything hanging into the tire’s path.
The bottom line
“KDSS-compatible” sounds like a filter you have to apply to every guard you buy, but it really only governs one part: the front inner splash guards on a 2010–2024 truck, where the oversized KDSS sway bar leaves no room for a standard-shaped panel. For mud flaps and deletes — the parts most 5th gen owners are actually shopping for — Ark’s TriXPoly sets fit KDSS and non-KDSS trucks alike, and they’re the toughest version of the part we’ve found to sell. Find your generation above, pick full flaps or deletes, and if your build goes deeper into the KDSS system itself, the Dr KDSS collection is the next stop.
